waste PE scraps granulating line

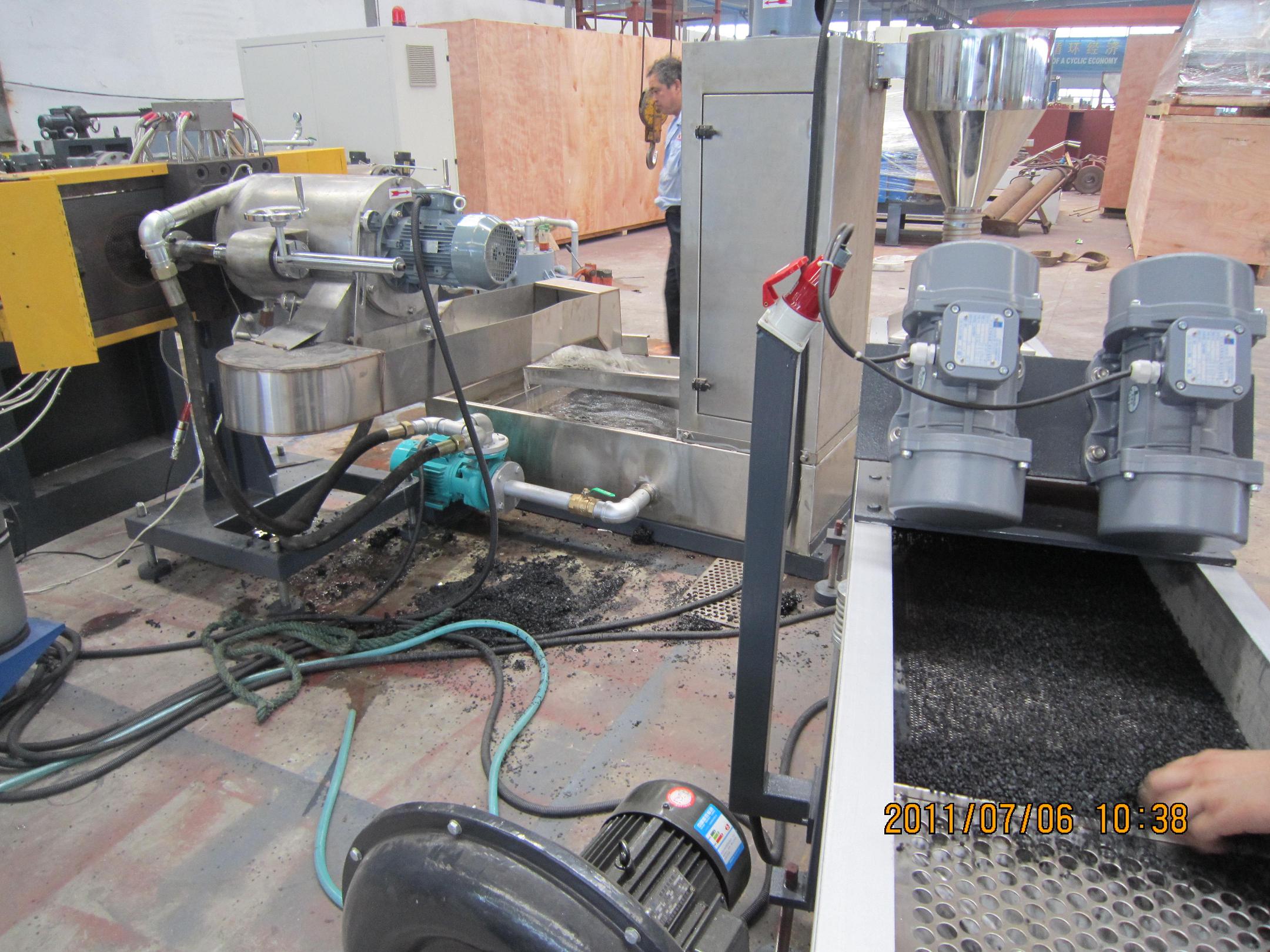

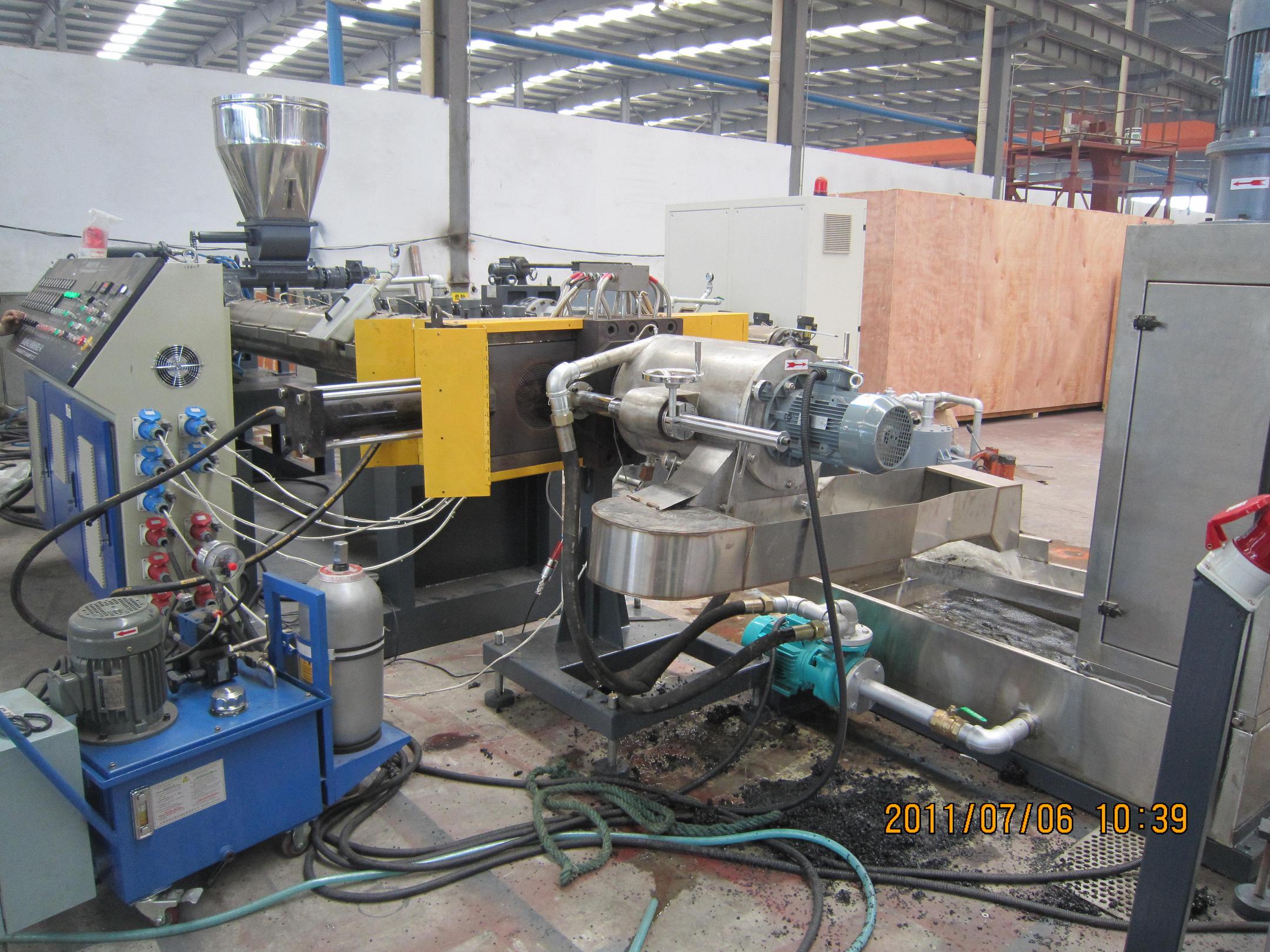

Parts of the PE/PP Scrap pelletizing machine
1 set of Convey feeder for plastic film
1 set of Extruding Machine
1 set of screen changer
1 set of die and water-ring pelletizing machine
1 set of dewater Machine
1 set of Vibrator sieve
1 set of air conveying blower
1set of Storage silo
1 set of Electric control box
Description of this plant:
This kind of pelletizing recycling line is mainly applied to recycle and pelletize PE/PP Scraps and others, it has features of novel design, lower power consumption, higher output, running stable, easy operation and maintain.
The process flow of PE/PP Scrap pelletizing line is as following:
Convey feeder→ Extruding machine→ Die-head and High speed screen exchanger→ water-ring pelletizing machine → Horizontal Dewatering machine→ Vibrating sieve→ Air conveying Blower → Storage silo
· Machine parameters:
Model |
SJ100 |
SJ120 |
SJ150 |
Capacity |
150-200kg |
200-280kg |
250-350kg |
Driving motor |
55kw |
75kw |
90kw |
Production solution:
1. for film material , could use aggregator machine or compassing device to make film into small pieces , then force feeder into extruder plasticizing .
2.for pet/pp/pe flakes material , could use force feeder into extruder plastizing .
